# Hyper3D Rodin Textures and Materials: A Game-Ready Workflow

For a safe Rodin texture workflow, inventory the files you actually received, verify UVs and image channels, rebuild material intent explicitly in the destination tool, and validate under representative lighting before promotion. This is an acceptance workflow, not evidence that a named Rodin feature, export option, material preset, rigging service, integration, performance level, or commercial entitlement exists. Work only from files visible in the current download and from behavior reproduced in the team’s own tools.

Evidence boundary: No verified current Hyper3D Rodin official product documentation, account-level interface/export inventory, pricing source, or benchmark was supplied for this batch. The separate SHA-256-bound SEELE captures are visual observations, not product documentation: they support only what is directly visible and captioned. They do not establish Rodin provenance, a Rodin-to-SEELE workflow, interoperability, equivalent capabilities, topology, polycount, format or engine compatibility, performance, or pricing. Verify every Rodin-specific control, output, and term against current official Rodin sources and the reader’s own account.

Preserve an untouched source package, create versioned derivatives, change one variable at a time, and record pass/fail evidence at each handoff. A plausible viewport image is not enough: the asset must survive the checks that matter for its intended destination.

1. Inventory the source package before editing

Copy the complete download into a read-only, versioned source directory. Record filenames, extensions, dimensions, bit depth where visible, timestamps, nested archives, and any manifest or license included with the package. Do not rename images or consolidate folders yet; path changes can hide the original cause of a missing reference. Open the model in a neutral inspection scene and list every material slot and unresolved image path. A checksum or immutable archive is useful when several people will touch the asset, because it lets the team distinguish the supplied package from later repairs.

Example. Suppose the package contains one model, three images with opaque names, and no explanatory manifest. Record those facts exactly, then map each image only after inspecting its pixels and material connection; do not label them “base color,” “normal,” or “roughness” from filename intuition alone.

Limitation. An inventory proves presence, not semantic intent. An image can exist and still use an unknown channel packing, color space, UV set, or artistic convention.

Decision criterion. Continue when every observed file has a stable path and status—referenced, unreferenced, unknown, or missing. Block material reconstruction if a required dependency is absent and cannot be recovered from an authorized source.

2. Audit UV sets and texel behavior

Inspect each mesh and each UV set before changing seams or packing. Check whether islands exist, whether they occupy the expected tile region, whether overlaps appear intentional, and whether mirrored or stacked shells would affect directional details. Look for extreme stretching on silhouettes, tiny islands on important features, inconsistent density, and padding that may fail at lower mip levels. Use a checker pattern as a diagnostic overlay, not as a replacement texture. If several material slots or UV sets exist, test them independently and record which shader input uses which coordinates.

Example. A prop may look acceptable from the front while the checker reveals severe compression on its underside and a narrow handle. Mark those regions and test the expected camera distance before deciding whether the distortion matters. A background prop may pass while a first-person item with the same distortion does not.

Limitation. A checker diagnoses coordinate distortion but cannot reveal the intended artistic mapping, the original bake cage, or whether an overlap was deliberate. Repacking UVs can invalidate every supplied image and any hidden downstream bake.

Decision criterion. Keep the existing UVs when distortion, overlap, density, and padding satisfy the measured use case. Create a versioned UV repair only when a documented defect blocks the target view or bake, and plan texture rebaking or reprojection before moving islands.

3. Classify image channels from evidence

Inspect images in a channel viewer and compare them with the connected shader inputs. Color images generally require different interpretation from numeric surface data, but the actual intent must come from observed values, connections, included documentation, or a controlled render test. Check alpha separately; it may encode transparency, a mask, or unused data. For tangent-space normal candidates, inspect channel patterns and test orientation rather than assuming a convention. For packed images, document the meaning of each channel only after evidence supports it. Keep unknown channels marked unknown instead of forcing them into a familiar template.

Example. If a grayscale image is connected to a roughness-like input in the imported graph, render a simple sphere or a representative patch while toggling and inverting it. The test can show whether highlights become plausibly broader or narrower, but the result remains a local interpretation until the source intent is verified.

Limitation. Visual plausibility is not provenance. Different workflows can invert gloss and roughness, encode masks in alpha, or use artistic maps that do not follow a standard physical convention.

Decision criterion. Assign a semantic label only when at least two signals agree—for example, graph connection plus channel behavior. Otherwise retain an “unknown” label and prevent automated repacking or destructive conversion.

4. Rebuild the destination material explicitly

Treat the imported graph as evidence, not as a guaranteed destination shader. Create a clean material in the target DCC or engine and connect only inputs whose meaning has been verified. Set color-space interpretation deliberately, document scalar ranges, and preserve a screenshot or node listing of the source graph before replacement. Separate reusable texture evidence from renderer-specific controls such as blend mode, culling, normal strength, and surface response. Test under neutral lighting, a grazing light, and at least one lighting setup representative of the game. This exposes errors that a bright studio environment can hide.

Example. For a painted metal prop, first connect the verified color image, then add one numeric input at a time while comparing highlight shape and edge response. If adding a candidate normal image flips dents into bumps, correct the interpretation in the derived material and record the change rather than altering the original image silently.

Limitation. A rebuilt shader can match one renderer and still differ in another because lighting, tone mapping, compression, and shader models vary. The article cannot establish which maps or material semantics any Rodin package supplies.

Decision criterion. Accept the material graph when every active input points to a known file or documented constant, survives a clean reopen, and behaves consistently across the agreed validation lights. Reject unexplained nodes and hidden local paths.

5. Choose between repair, rebake, and retexture

Classify the defect before choosing a tool. A broken path needs relinking; incorrect channel interpretation needs a material correction; UV distortion may need UV work plus rebaking; visible seams may need padding, projection, or paint; inconsistent artistic detail may justify retexturing. Preserve layers and masks in a derived source format when the editing tool supports them. For any rebake, keep the source mesh, target mesh, cage assumptions, tangent basis, and bake settings together. Test the repaired region at the camera distance and mip level that matter, not only in a zoomed editor view.

Example. If a seam appears only after mip reduction, expanding edge padding may solve the measured problem without repainting the asset. If the seam comes from mismatched islands and crosses a hero feature, a controlled reprojection and paint pass may be justified. These are different diagnoses even when the symptom looks similar.

Limitation. Retexturing can alter authorship, licensing obligations, visual identity, and production scope. It cannot recover unavailable source intent automatically, and a prettier local result is not proof of technical correctness.

Decision criterion. Choose the least destructive option that passes the target view, lighting, compression, and mip tests. Escalate to rebake or retexture only when the defect is reproducible, material to the use case, and owned by someone with authority to change the asset.

6. Validate materials in the destination environment

Import a versioned derivative into a small destination test scene. Verify that image references resolve on a clean machine or build environment, not merely on the author’s workstation. Check the asset under representative lights, exposure, post-processing, camera distance, and quality settings. Inspect transparency order, two-sided behavior, normal response, mip transitions, texture streaming, and compression artifacts where relevant. Measure memory or runtime impact only with project-owned tools and a defined scene; do not convert one local observation into a universal claim. Capture screenshots and settings so later changes can be compared.

Example. A foliage card may look correct in the DCC but show dark edges after destination compression and mip generation. Test one controlled change—such as alpha handling or edge dilation—then rebuild and compare the same camera path. The before/after record identifies the responsible stage.

Limitation. A test scene covers only its chosen platform, quality level, lighting, and camera conditions. It does not prove every device or engine configuration will behave the same way.

Decision criterion. Promote the material only when it loads without private paths, preserves required appearance across the agreed representative cases, and stays within project-defined budgets. Otherwise record the failing case and return to the smallest responsible stage.

7. Package a reproducible material handoff

Create a derived delivery folder containing only approved model files, referenced images, and documentation required by the destination pipeline. Use deterministic naming and relative paths where the target workflow supports them. Include a manifest listing source version, derivative version, image semantics, color-space choices, UV set usage, material assignments, repair notes, license location, validation environment, and known limitations. Reopen or reimport from the delivery folder in a clean project. Do not include abandoned tests that could be mistaken for production inputs, and do not overwrite the untouched source package.

Example. A handoff for one prop might include the derived model, four verified images, a short material table, and a validation note showing the destination version and test scene. A teammate should be able to move that folder, reconnect nothing manually, and reproduce the approved appearance within the stated environment.

Limitation. Packaging cannot resolve uncertain rights, unknown channel intent, or missing source evidence. Relative paths also do not guarantee that every importer will preserve the same semantics.

Decision criterion. Close the material task only after a second person or clean environment can reconstruct the result from the package and manifest. Keep unresolved uncertainty as a named blocker or accepted limitation with an owner.

Final acceptance checklist

Archive the untouched source; inventory every model, image, and sidecar; verify UV sets and image channels; document color-space and packing decisions; rebuild destination materials from known inputs; test repair choices on versioned derivatives; validate representative lighting, mip, compression, and platform conditions; and reimport the delivery folder in a clean environment. Accept no hidden local paths, unexplained active shader inputs, or unsupported product claims. A game-ready material is not the one that looks best in one viewport; it is the one whose appearance, dependencies, limitations, and destination behavior can be reproduced by the team.

Independent SEELE proof: visible workflow state

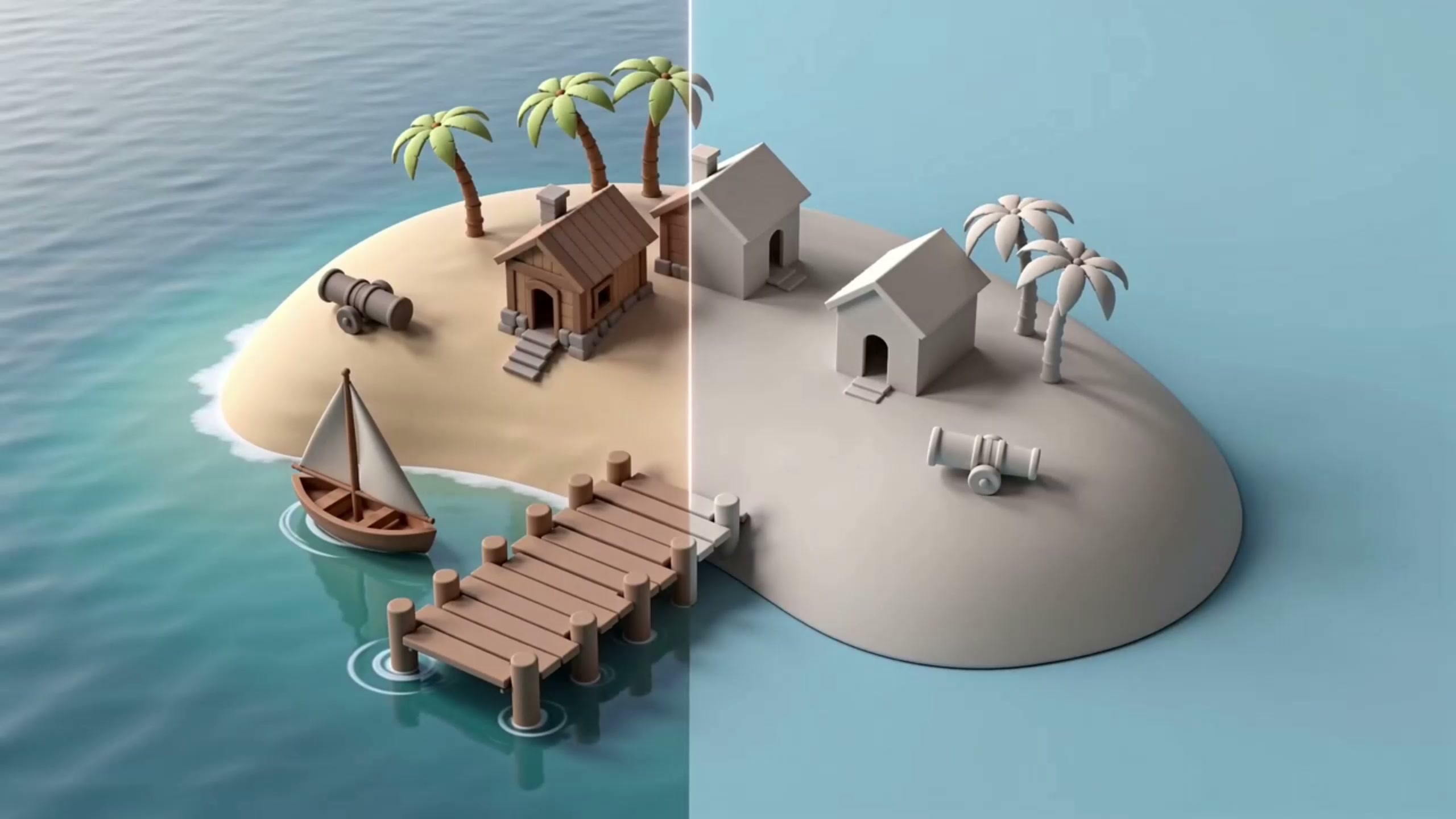

This authentic, receipt-bound SEELE capture shows an island scene in which brown buildings and blue water appear beside a lighter unfinished-looking area. Its only job in this article is to document that visible SEELE state. It does not show or verify Rodin, a DCC application, a game engine, an export format, topology, retopology, rigging, animation authoring, or a transfer between tools.

Independent SEELE proof: visible output state

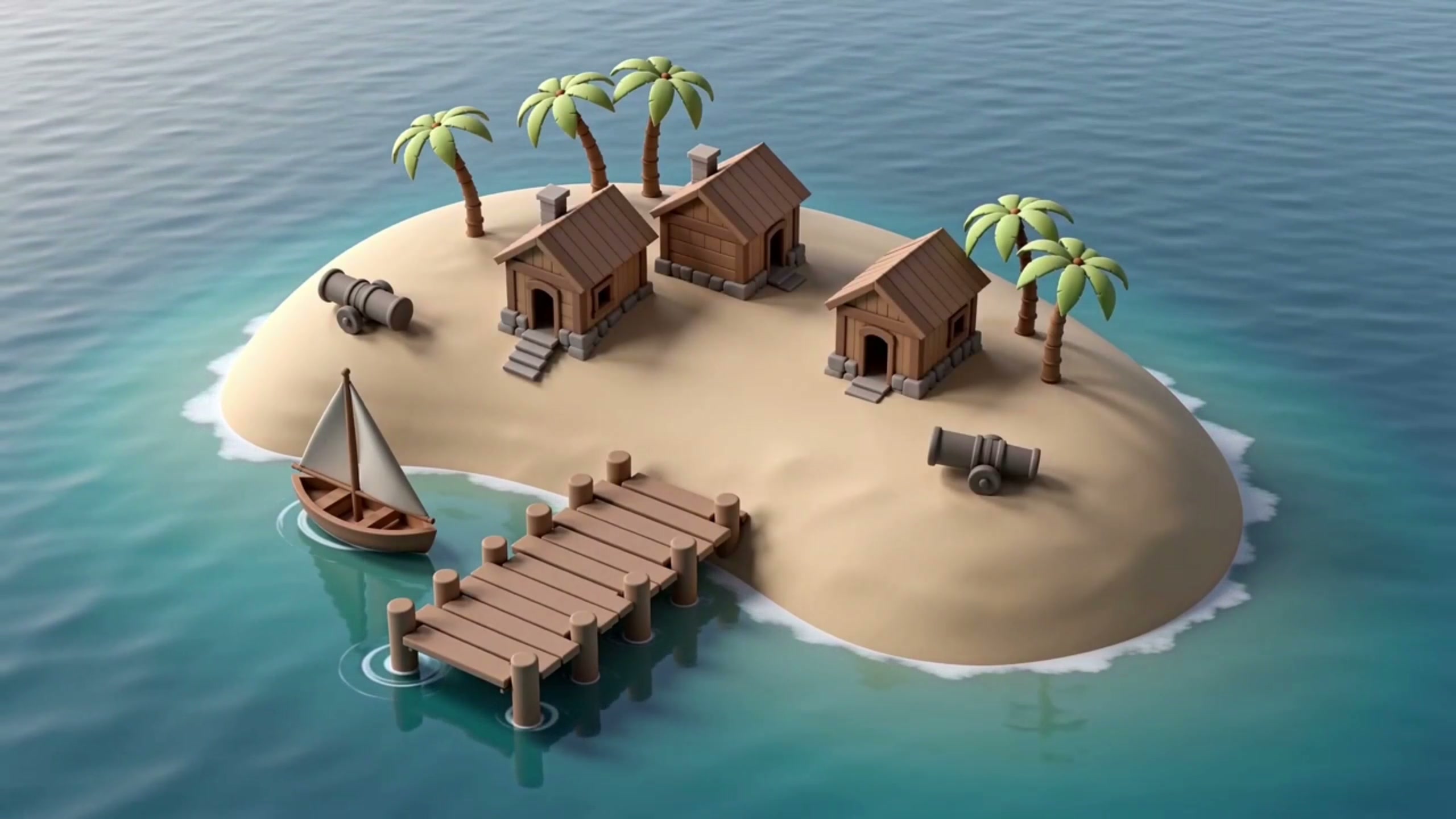

This second authentic SEELE capture shows a stylized island scene with brown buildings, palm trees, surrounding water, a pier, and a boat. It is a separate SEELE output example, not evidence for any Rodin operation or for a Blender, Unity, Unreal Engine, format, mesh, material, rigging, or interoperability claim. The article's technical workflow decisions must be validated with the reader's own source files and target tools.
